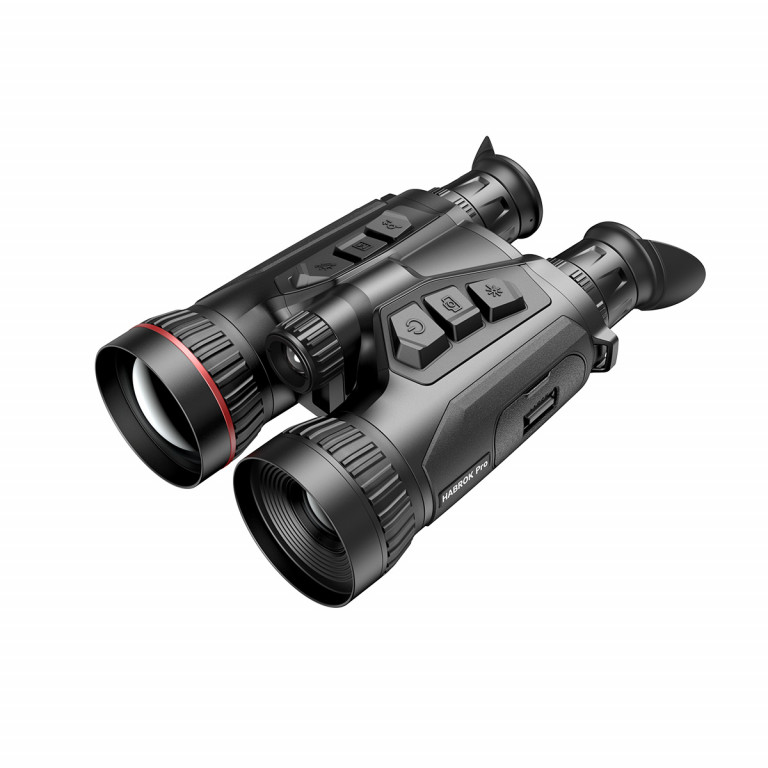

The HIKMICRO Habrok Pro HX60LS features a cutting-edge 50 Hz thermal sensor, delivering ultra-smooth, real-time imaging that enhances target detection and tracking in dynamic environments. Combined with thermal-digital fusion, a 4K camera, and OLED display, it provides a clear, actionable view that accelerates decision-making. Long-range targeting, extended battery life, and an ergonomic, lightweight design keep operators mission-ready during extended operations. Engineered for precision and reliability, the HX60LS gives professionals the confidence, clarity, and responsiveness needed to perform effectively in high-stakes, fast-moving scenarios.

Please note: Due to distribution rights and agreements we can only sell HIKMICRO products to residents of the UK.

Specs
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
1280 × 1024
Frame Rate
50Hz
Pixel Interval
12μm
Response Waveband
8μm to 14μm
NETD
<15 mK (@25°C), F#=1.0
Lens (Focal Length)
60mm, F1.0
Focus Mode
Focus Ring
Detection Range
3100m
Min. Focusing Distance
3m
Magnification
2.6x–20.0x (7.7x)
Field of View (H × V), Degrees / m @100m
14.6° × 8.8° / 25.6m × 15.4m
Digital Image Sensor
1/1.8'' Progressive Scan CMOS
Max. Resolution (Digital)
3840 × 2160
Focal Length (Digital)
60mm, F2.2
Min. Working Distance (Digital)
3m
Focus Mode (Digital)
Focus Ring
Magnification (Digital)
5.5x–22.0x (4x)
Field of View (H × V, Digital), Degrees / m @100m
7.3° × 4.1° / 12.6m × 7.2m
Smart IR
Yes
IR Illuminator Wavelength
850nm
Viewing Range at Night
400m
Replaceable IR Illuminator
Yes
Display
0.49 inch OLED, 1920 ×1080
Palettes
Thermal
Exit Pupil
8mm
Eye Relief
15mm
Diopter (Range)
-5D~+3D
Brightness Adjustment
Yes
Tone Adjustment
Cold, Warm
Contrast Adjustment
Yes
FFC Mode
Auto, Manual, External Correction
Zoom Pro
No
Image Pro 3.0
Yes
Sync Pro
Yes
Record Video
Yes
Capture Snapshot
Yes
Audio Recording
Yes
Storage
Built-in EMMC (64 GB)
PIP
Yes
Hotspot
Yes
Hot Track
Yes
Digital Magnetic Compass
Yes
GPS
Yes
Local Album
Yes
Standby Mode
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time
5.5h (25°C, hotspot off, LRF on)
Dimension
152.8mm × 81.95mm × 231.5mm (6.0" × 3.2" × 9.1")
Working Temperature
-30℃ ~ +55℃
Weight
1050g with battery pack
Protection Level
IP67
Interpupillary Adjustment Range
60mm to 74mm
Mounting Adapter
1/4“-20-UNC
Safety Class for Laser
Class 1
Wavelength (Laser)
905nm
Max. Measuring Range
1000m
Measurement Accuracy
±1m
Min. Measuring Range
10m
